    2V200Ah OPzV Gel Battery ABS Material Battery Case Pure Gel Battery CE Approved

    Ask Lasest Price
    Model Number : OPzV2-200
    Certification : CE UL ISO9001 ISO14001
    Price : Negotiable
    Payment Terms : T/T L/C, D/A, D/P
    Supply Ability : 10000PCS/30Days
    Delivery Time : 30 Days
    • Product Details
    • Company Profile

    2V200Ah OPzV Gel Battery ABS Material Battery Case Pure Gel Battery CE Approved

    2V200Ah Tubular Gel Battery OPzV Battery Deep Cycle Gel Battery Pure Gel Battery

    Product Features

    The OPzV series adopts an Immobilized Gel and Tubular Positive Plate technology. It offers high reliability and stable performance. By using diecasted positive grid and patented active material formula, it exceeds the DIN standard values and offer 20+ years design life in float service. It is very suitable for cyclic use under extreme operating conditions.

    Construction


    Positive plate :Tubular plate with die cast Pb-Ca alloy grid

    Negative plate : Balanced Pb-Ca grid for improved recombination efficiency

    Separator : leaf shape polymer separator

    Electrolyte : Dilute high purity sulphuric acid with fumed Silica gel

    Battery container and cover : ABS

    Pillar seal: 100% factory tested, proven two layers epoxy resin seal

    Relief valve : Complete with integrated flame arrestor

    Specifications

    Nominal Voltage (V)2
    Designed Floating Life (20oC)20+ Years
    Nominal Capacity (20oC)200 Ah @ C10 (to 1.80Vpc)
    DemensionsL103mm×W206mm×H390mm
    Approx. Weight17.0 kg (37.5 lbs)
    Terminal TypeFemale Copper Insert M8 (torque:10~12N.m)
    Internal ResistanceApprox. 0.56mOhm (fully charged @ 25°C)
    Max. Charge Current40 A
    Max. Discharge Current (5S)1000 A
    Short Circuit Current1800 A
    Self DischargeApprox. 2% per month @ 20°C

    Ambient Temperature

    Discharge: -40~65°C Charge: -30~65°C Storage: -25~45°C
    Float Charge Voltage2.25 - 2.29V (-3mV / ℃/ cell)
    Equalize Charge Voltage2.35 - 2.40V (-3mV / ℃/ cell)
    Container MaterialABS(UL94-V0 optional)


    DIMENSIONS



    BATTERY DISCHARGE TABLE PARAMETERS FOR SOLAR & WIND APPLICATIONS

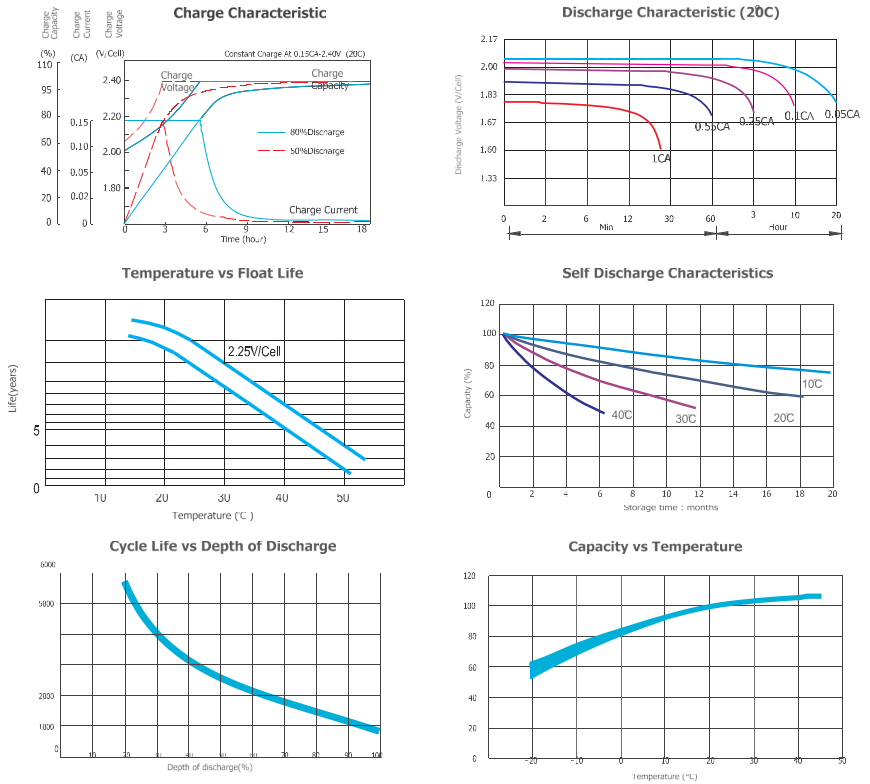

    CHARACTERISTICS




    Application

    Telecom outdoor applications, renewable energy systems, other harsh environment applications.

    Advantages

    1. 20+ years design life at floating condition.

    2. Wide operating temperature range from -40C to 60C.

    3. Tubular positive plate with prolonged cycle life.

    4. Nano Silica gel electrolyte.

    5. Lead Calcium die cast grid with improved corrosion resistance capability.

    6. Excellent deep discharge recovery capability.
